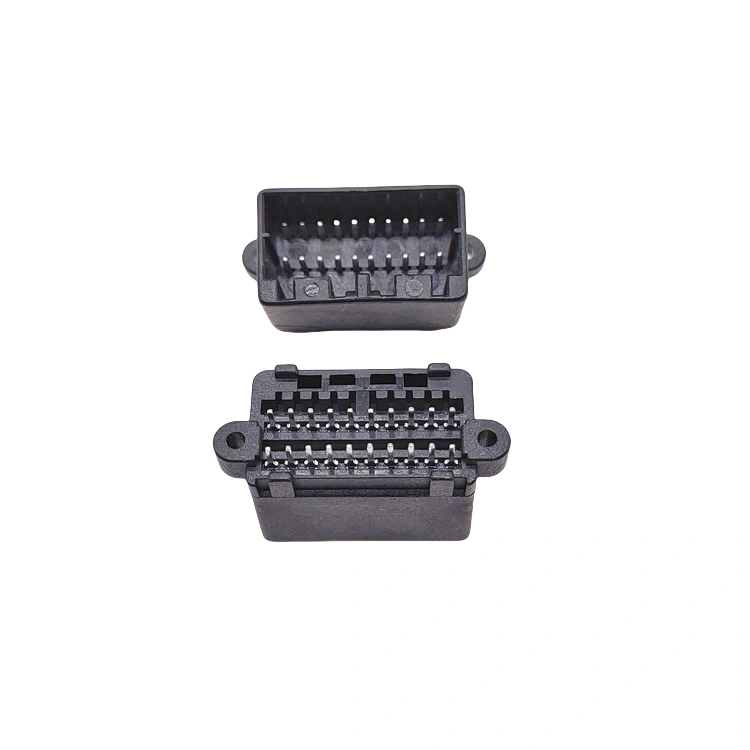

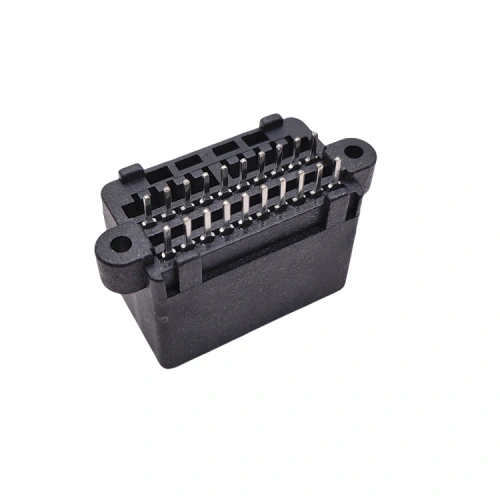

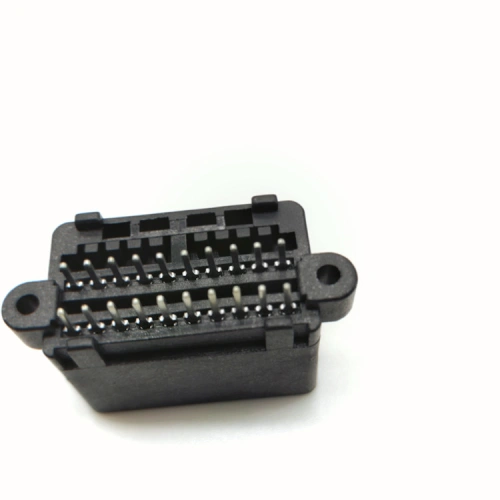

20PIN Automotive Connectors JHB00128

●Code:JHB00128

● Current Rating: 2A/3A

● 2.5mmCenterline

lqm849538848@gmail.com

+86 13631516650

Contact Now

+ Inquire

Specifications

Documentation

High-quality and reliable automotive electronic connectors, suitable for transmitting power and signals in various automotive electronic controller modules.

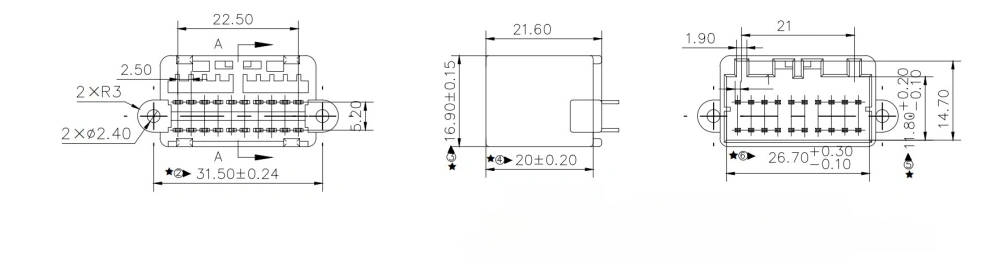

RECOMMENDED PCB LAYOUT

Name	20PIN connector
Code	JHB00128
Material	PBT GF/UL-94
Pitch	2.5mm
Insulation	100M min.
Poles	*201.00.6MM*
Temperature	-40-80°
Current Rating	2A-3A
Contact Rresistance	5mΩ(initial)
Metal	Nickel plated bottom tin plating

Customized services are available

There are many types of automotive electronic connectors, and each model has its own unique needs. Whether it is a traditional fuel vehicle or a new energy vehicle, we can provide you with the right connector. At the same time, Jinhua Electric Company attaches great importance to product quality and environmental protection, and has passed the IATF16949 quality management system and ISO14001 environmental management system, as well as the EU CE safety certification and ROHS environmental protection certification. Provide customized services, have a complete new product development process, including new product design communication, mold design and development, tooling and fixture design development, testing module design and development, and PPAP and other data submission, fully meet customer needs

Packaging information

As a strong factory, our warehouse delivery system is a strong bridge to ensure that products reach customers smoothly. Standardized shelf arrangement, from raw materials to semi-finished products, to finished products, is clear at a glance, easy to quickly retrieve and retrieve. The moment of delivery is when we show efficient execution. Trained warehouse personnel work closely with the production line to initiate the shipping process as soon as a product rolls off the production line. Professional packaging protection, every step is rigorous and meticulous, just to let the product start in the best condition. Relying on long-term cooperation with high-quality logistics partners, we have built a diversified transportation channel, covering all aspects of road, rail and shipping, whether it is urgent order distribution in surrounding cities or international orders across oceans and seas, we can find the most suitable logistics solutions to ensure that the goods are delivered on time and in good condition.

Cross-Reference Guide

Tianwan Part	Reference Part
JHB00128	179254-2 (TE/AMP family)

Cross-references are for functional comparison only. Always verify dimensions and pinout against your drawing before ordering.
