23PIN Automotive PCB Connectors JHB00039

●Code:JHB00039

● Current Rating: 10A-12A/ 5A-8A 2.4mm/3.5mm Centerline

lqm849538848@gmail.com

+86 13631516650

Contact Now

+ Inquire

Specifications

Documentation

Custom Automotive Electronic Connectors — Tailored to Your Needs

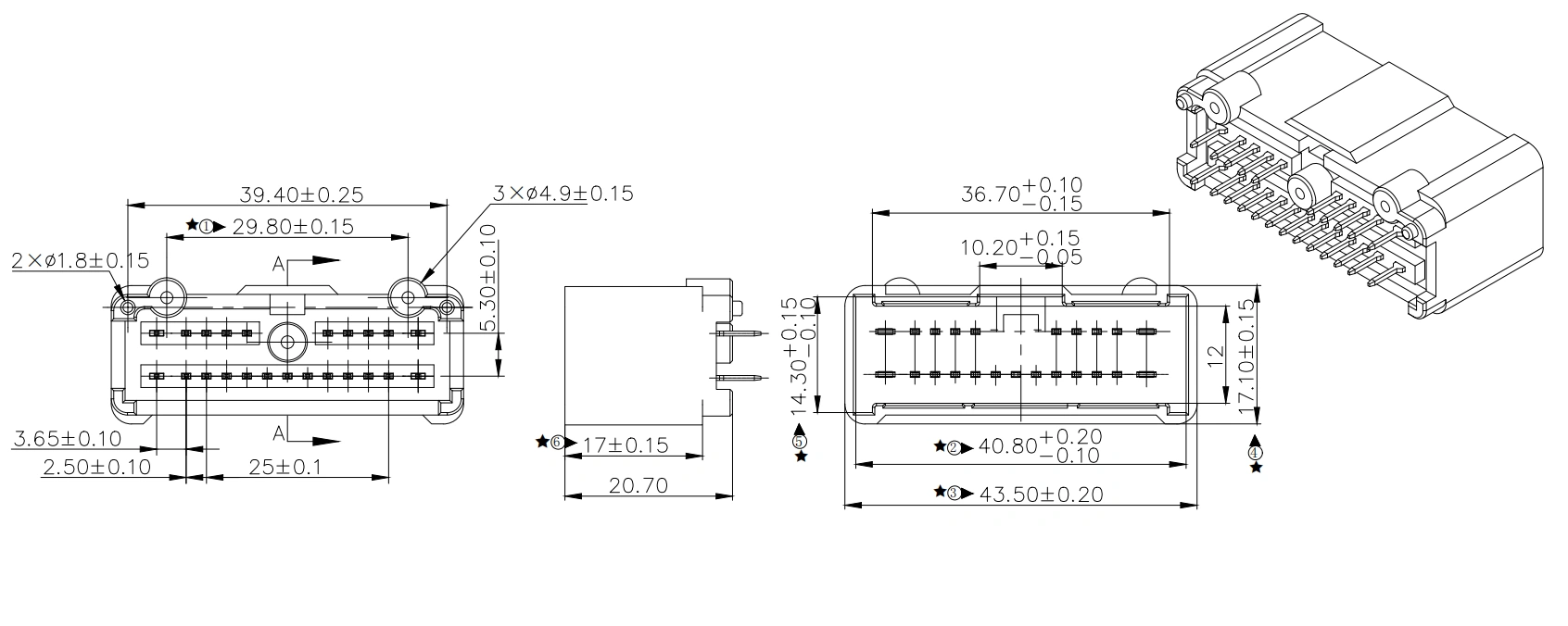

RECOMMENDED PCB LAYOUT

Name	23PINWaterproof Automotive Connectors
Code	JHB00039
Material	PBT GF/UL-94 HB
Pitch	2.4mm/3.5/mm
Insulation	100M min.
Poles	4* 2.30.6+19 1.0*0.6mm
Temperature	-40-125°
Current Rating	10A-12A/ 5A-8A
Contact Rresistance	5mΩ(initial)
Metal	Nickel plated bottom tin plating

Customized services are available

There are many types of automotive electronic connectors, and each model has its own unique needs. Whether it is a traditional fuel vehicle or a new energy vehicle, we can provide you with the right connector. At the same time, Jinhua Electric Company attaches great importance to product quality and environmental protection, and has passed the IATF16949 quality management system and ISO14001 environmental management system, as well as the EU CE safety certification and ROHS environmental protection certification. Provide customized services, have a complete new product development process, including new product design communication, mold design and development, tooling and fixture design development, testing module design and development, and PPAP and other data submission, fully meet customer needs

Packaging information

As a strong factory, our warehouse delivery system is a strong bridge to ensure that products reach customers smoothly. Standardized shelf arrangement, from raw materials to semi-finished products, to finished products, is clear at a glance, easy to quickly retrieve and retrieve. The moment of delivery is when we show efficient execution. Trained warehouse personnel work closely with the production line to initiate the shipping process as soon as a product rolls off the production line. Professional packaging protection, every step is rigorous and meticulous, just to let the product start in the best condition. Relying on long-term cooperation with high-quality logistics partners, we have built a diversified transportation channel, covering all aspects of road, rail and shipping, whether it is urgent order distribution in surrounding cities or international orders across oceans and seas, we can find the most suitable logistics solutions to ensure that the goods are delivered on time and in good condition.

Cross-Reference & Replacement Check

Currently designing with a competitor part (TE/AMP, Aptiv/Packard, JAE, Yazaki, KET, Sumitomo)? Send us your part number or drawing - our engineers will check whether JHB00039 can replace it functionally, free of charge, within 24 hours.

Ordering Information

Item	Policy
MOQ	Flexible - small trial orders accepted for new customers
Lead Time	15-25 days after order confirmation (custom molds: 20-35 days development)
Samples	Free samples for evaluation; freight collect
Customization	Pin count, pitch, material and plating customizable from drawing or sample
Quality Docs	IATF 16949 certified plant; PPAP / dimension reports on request

FAQ

Q: Can I get free samples of JHB00039?
A: Yes. We provide free samples for engineering evaluation - you only cover the freight. Most samples ship within 3-5 working days.

Q: What is the minimum order quantity?
A: MOQ is flexible. For standard parts, small trial orders are welcome; for customized parts, MOQ depends on tooling amortization - contact us with your annual volume.

Q: Can you develop this connector in my custom pin count or pitch?
A: Yes. Our plant (Henan Jinhua Electric Co., Ltd., IATF 16949 certified) develops injection molds and stamping dies in-house, typically 20-35 days from drawing approval.

Send your drawing - get an engineering reply within 24 hours.
Email: lqm849538848@gmail.com | WhatsApp: +86 134 3169 7704
Tianwan Electronics is the export arm of our own factory, Henan Jinhua Electric Co., Ltd. (IATF 16949). Factory audits welcome.
