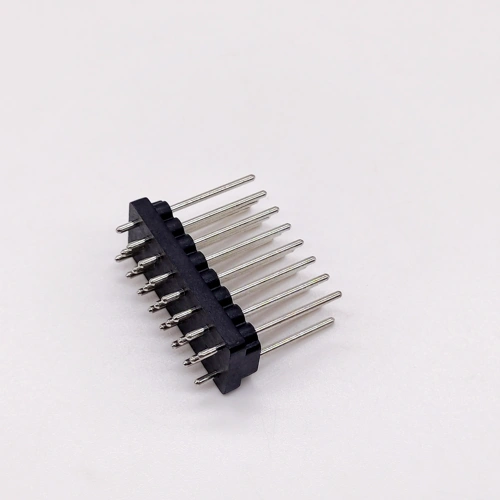

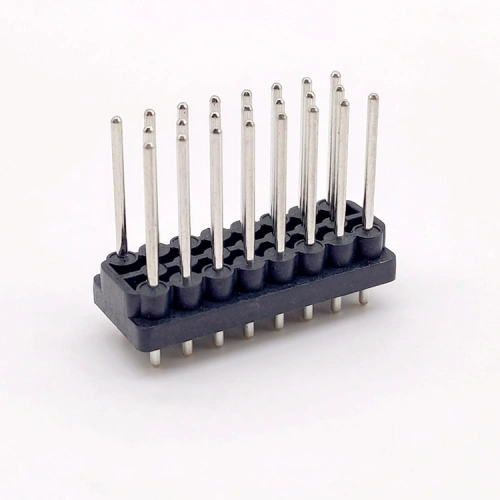

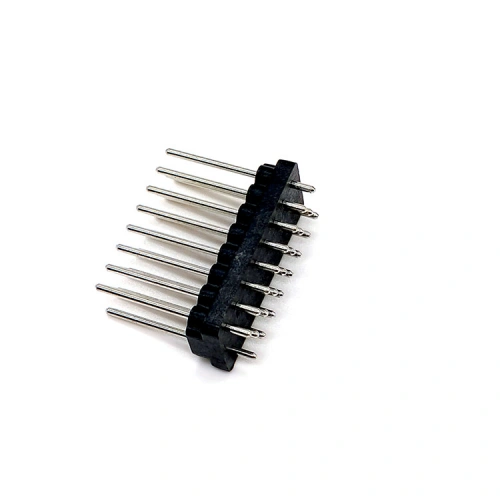

Automotive-grade waterproof automotive connector for ECU, body control and in-vehicle networking applications. Manufactured by Henan Jinhua Electric Co., Ltd. (IATF 16949 certified), exported by Tianwan Electronics. Key specifications below - custom pin counts, materials and plating available from your drawing or sample.
| Part Code | JHB00044 |
| Pin Count | 23*Φ1.3mm |
| Pitch | 4.0mm |
| Material | PA6T GF/UL-94 V0 |
| Metal / Plating | Brass with Nickel-Tin Plating (Brass Tin) |
| Temperature Range | -40°-265° |
| Rated Current | 10A-15A |
| Insulation Resistance | 100MΩ min. |
| Contact Resistance | 5mΩ (initial) |
| Dimensions | 14.0*34.0*27.3mm |
| MOQ | 1-3K (flexible for trial orders) |
| Notes | Must work with housing structure for waterproofing |
| Tianwan Part | Reference Part |
|---|---|
| JHB00044 | 776228-1 (TE/AMP family) |
Cross-references are for functional comparison only. Always verify dimensions and pinout against your drawing before ordering.
| Item | Policy |
|---|---|
| MOQ | Flexible - small trial orders accepted for new customers |
| Lead Time | 15-25 days after order confirmation (custom molds: 20-35 days development) |
| Samples | Free samples for evaluation; freight collect |
| Quality Docs | IATF 16949 certified plant; PPAP / dimension reports on request |
Q: Can I get free samples of JHB00044?
A: Yes - free samples for engineering evaluation, you only cover freight. Most samples ship within 3-5 working days.
Q: What is the MOQ?
A: Flexible. Small trial orders welcome; for custom parts MOQ depends on tooling amortization - tell us your annual volume.
Q: Can you match this to my current connector?
A: Send your part number or drawing and our engineers will confirm compatibility within 24 hours.
