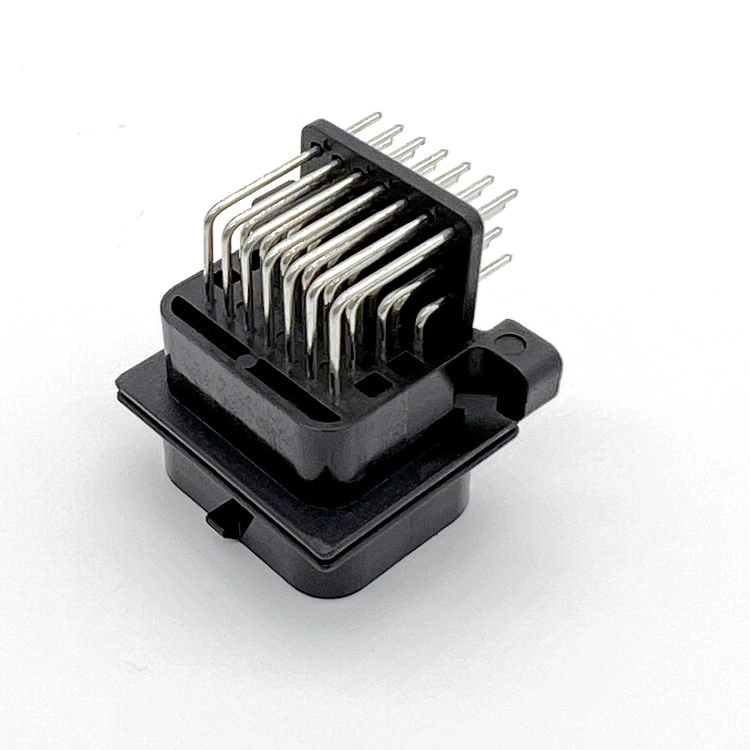

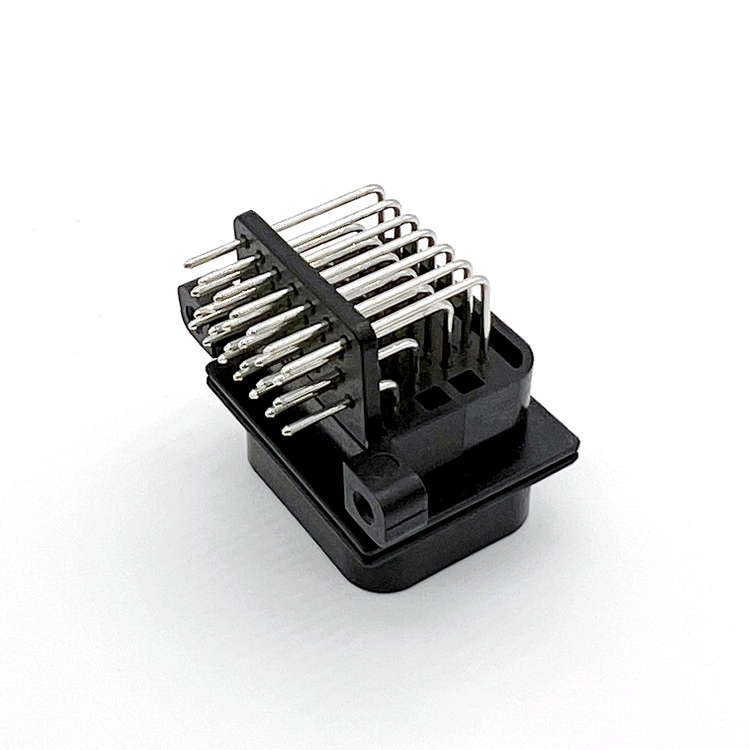

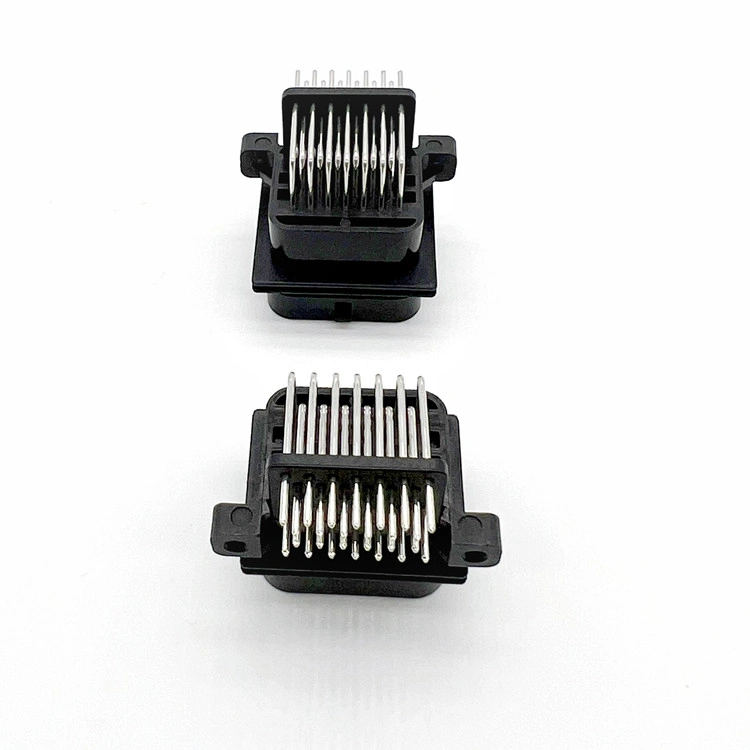

26-Pin Waterproof Automotive Connector JHB00403 (3-key)

lqm849538848@gmail.com

+86 13631516650

Contact Now

+ Inquire

Specifications

Documentation

Automotive-grade waterproof automotive connector for ECU, body control and in-vehicle networking applications. Manufactured by Henan Jinhua Electric Co., Ltd. (IATF 16949 certified), exported by Tianwan Electronics. Key specifications below - custom pin counts, materials and plating available from your drawing or sample.

Specifications

Part Code	JHB00403
Pin Count	26*Φ1.0mm
Pitch	3.0mm
Material	PBT GF/UL-94 V0
Metal / Plating	Brass with Nickel-Tin Plating (Brass Tin)
Temperature Range	-40°-125°
Rated Current	8A-10A
Insulation Resistance	100MΩ min.
Contact Resistance	5mΩ (initial)
Dimensions	36.539.024.7mm
MOQ	1-3K (flexible for trial orders)

Cross-Reference Guide

Tianwan Part	Reference Part
JHB00403	9-6437287-8 (TE/AMP family)

Cross-references are for functional comparison only. Always verify dimensions and pinout against your drawing before ordering.
