PCB connectors | High-Quality Products 26PIN header JHB00427

●Code:JHB00427

● Current Rating: 8A-10A

● 3mmCenterline 26P PCB CONNECTOR

lqm849538848@gmail.com

+86 13631516650

Contact Now

+ Inquire

Specifications

Documentation

Customized services are available

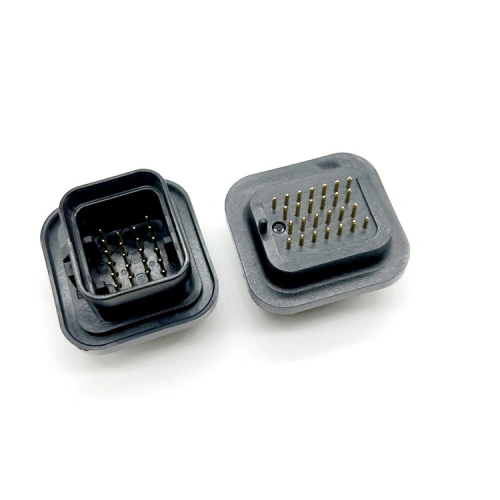

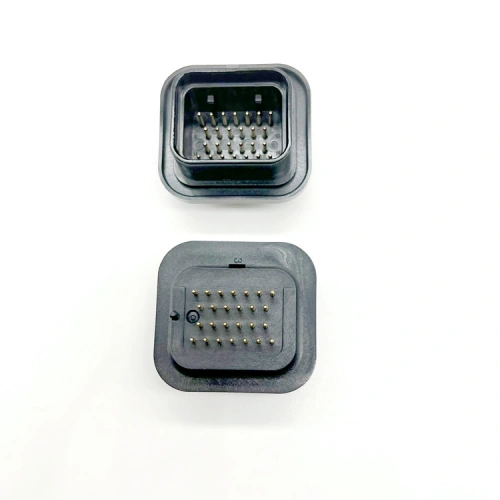

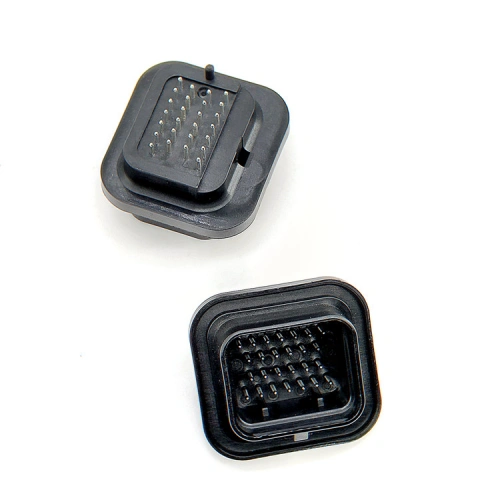

Automotive-grade automotive connector, PCB board end header 26PIN vertical board-to-wire

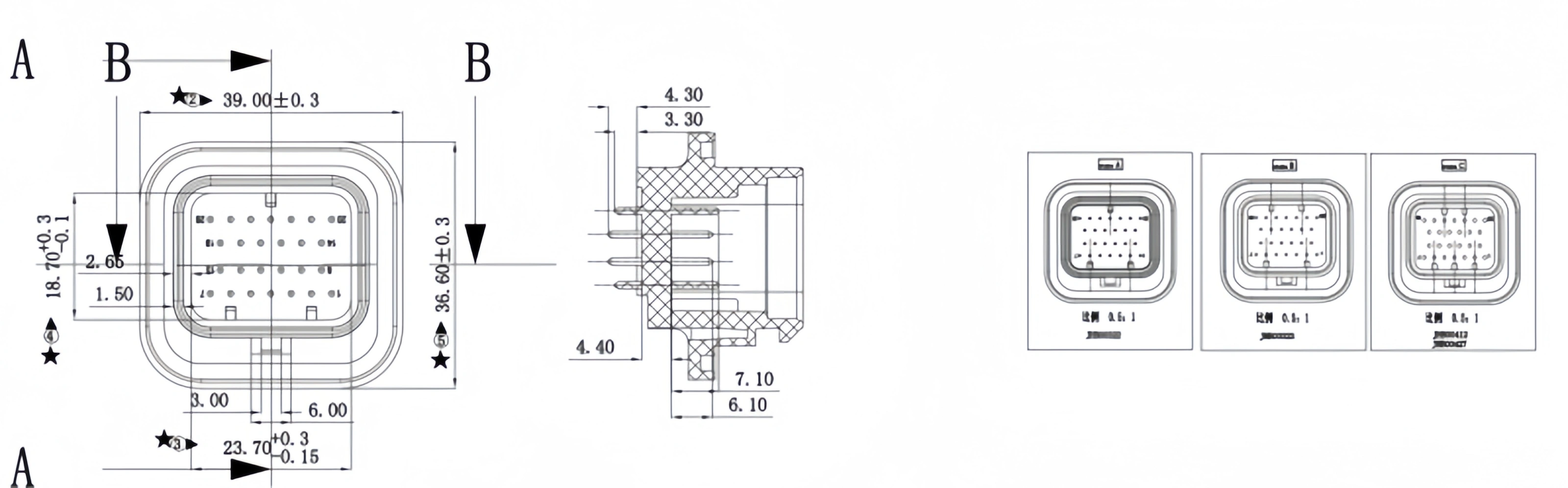

RECOMMENDED PCB LAYOUT

Name	26PIN PCB connector
Code	JHB00427
Material	PA66 GF/UL-94 V0
Pitch	3mm
Insulation	100M min.
Poles	26* Φ1.0mm
Temperature	-40-125°
Current Rating	8A-10A
Contact Rresistance	5mΩ(initial)
Metal	Nickel plated bottom tin plating
