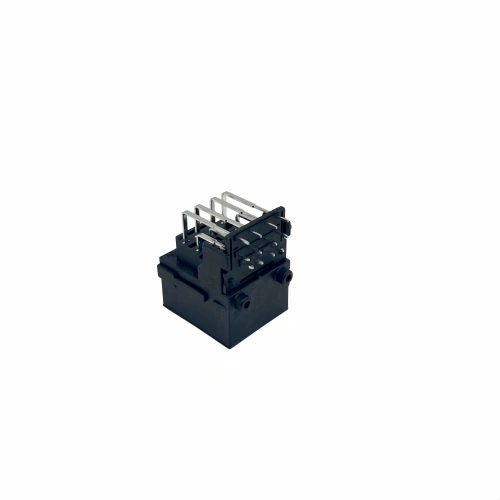

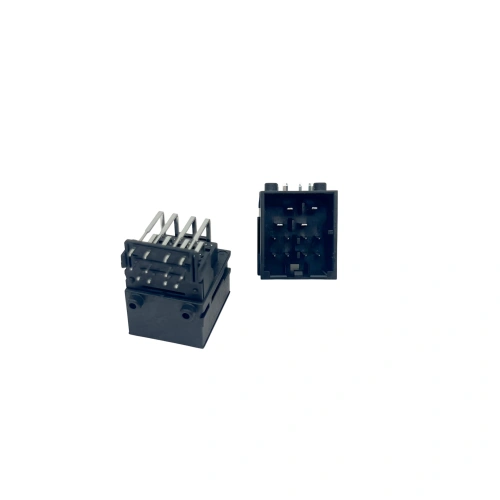

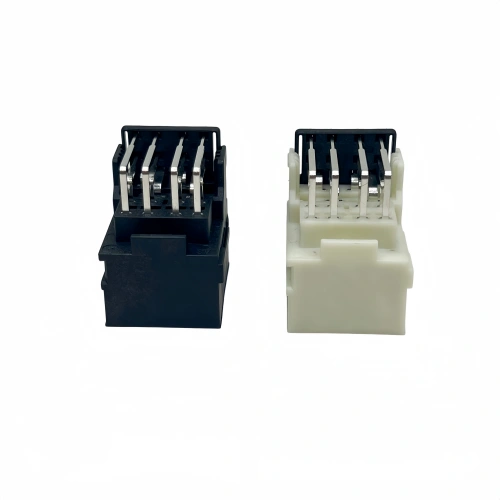

12-Pin Automotive PCB Connector JHB00633

lqm849538848@gmail.com

+86 13631516650

Contact Now

+ Inquire

Specifications

Documentation

Automotive-grade automotive pcb connector for ECU, body control and in-vehicle networking applications. Manufactured by Henan Jinhua Electric Co., Ltd. (IATF 16949 certified), exported by Tianwan Electronics. Key specifications below - custom pin counts, materials and plating available from your drawing or sample.

Specifications

Part Code	JHB00633
Pin Count	81.20.6+42.80.8mm
Pitch	4mm/3mm
Material	PA6T GF/UL-94
Metal / Plating	Brass with Nickel-Tin Plating (Brass Tin)
Temperature Range	-40°-265°
Rated Current	2A/20A-25A
Insulation Resistance	100MΩ min.
Contact Resistance	5mΩ (initial)

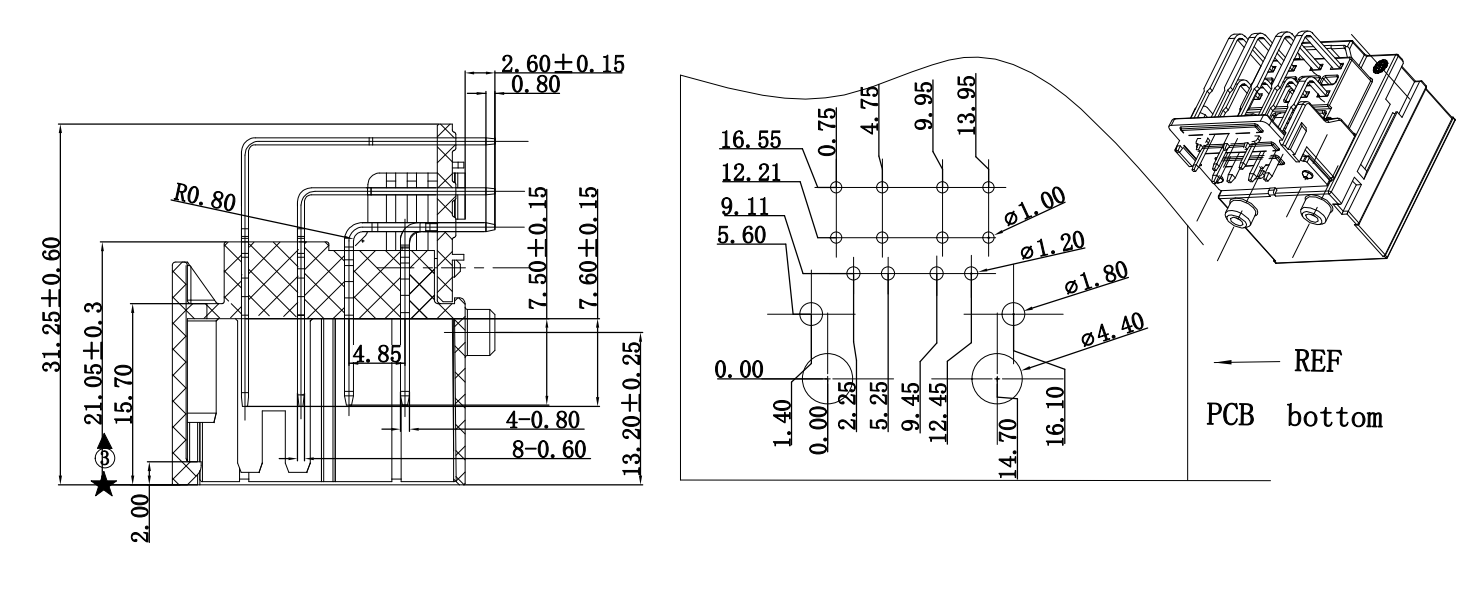

Dimensions	17.148.522.2mm
MOQ	1-3K (flexible for trial orders)

Cross-Reference Guide

Tianwan Part	Reference Part
JHB00633	241838-1 (TE/AMP family)

Cross-references are for functional comparison only. Always verify dimensions and pinout against your drawing before ordering.

Ordering Information

Item	Policy
MOQ	Flexible - small trial orders accepted for new customers
Lead Time	15-25 days after order confirmation (custom molds: 20-35 days development)
Samples	Free samples for evaluation; freight collect
Quality Docs	IATF 16949 certified plant; PPAP / dimension reports on request

FAQ

Q: Can I get free samples of JHB00633?
A: Yes - free samples for engineering evaluation, you only cover freight. Most samples ship within 3-5 working days.

Q: What is the MOQ?
A: Flexible. Small trial orders welcome; for custom parts MOQ depends on tooling amortization - tell us your annual volume.

Q: Can you match this to my current connector?
A: Send your part number or drawing and our engineers will confirm compatibility within 24 hours.

Send your drawing - get an engineering reply within 24 hours.
Email: lqm849538848@gmail.com | WhatsApp: +86 134 3169 7704
Tianwan Electronics is the export arm of our own factory, Henan Jinhua Electric Co., Ltd. (IATF 16949). Factory audits welcome.
