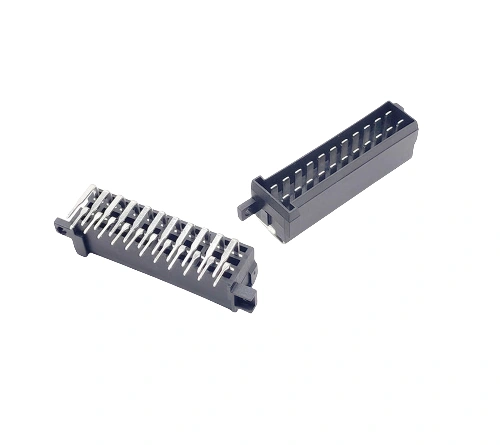

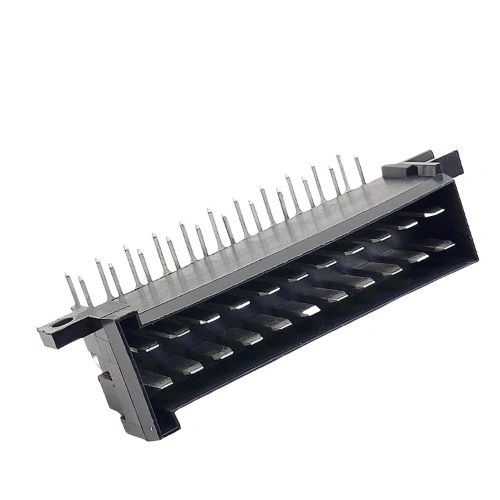

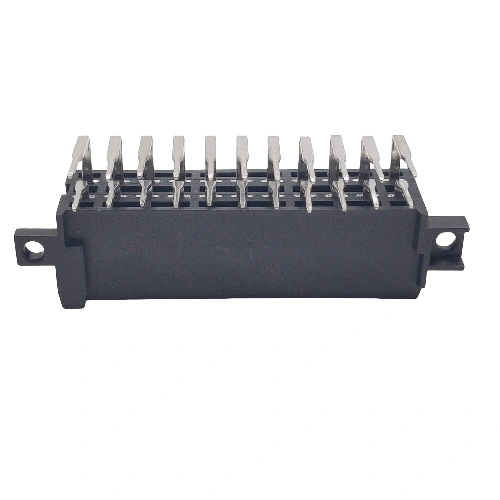

22PIN Automotive PCB Connector JHB00257

●Code:JHB00257

● Current Rating: 20A-25A

● 5.0mm Centerline 22P PCB Terminal Connector

lqm849538848@gmail.com

+86 13631516650

Contact Now

+ Inquire

Specifications

Documentation

High-quality and reliable automotive electronic connectors, suitable for transmitting power and signals in various automotive electronic controller modules.

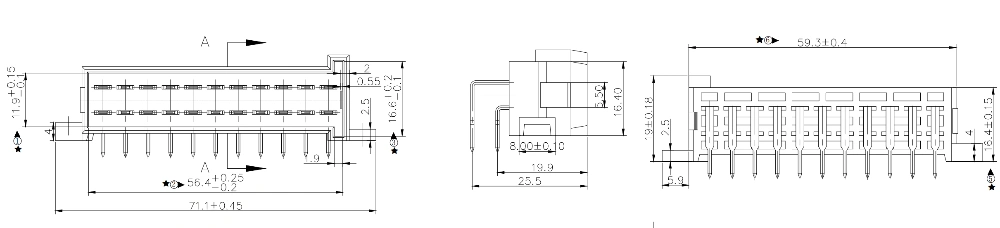

RECOMMENDED PCB LAYOUT

Name	22PIN PCB connector
Code	JHB00257
Material	PBT GF/UL94-V0
Pitch	5.0mm
Insulation	100M min.
Poles	*223.00.8mm*
Temperature	-40-125°
Current Rating	20A-25A
Contact Rresistance	5mΩ(initial)
Metal	Nickel plated bottom tin plating

Customized services are available
