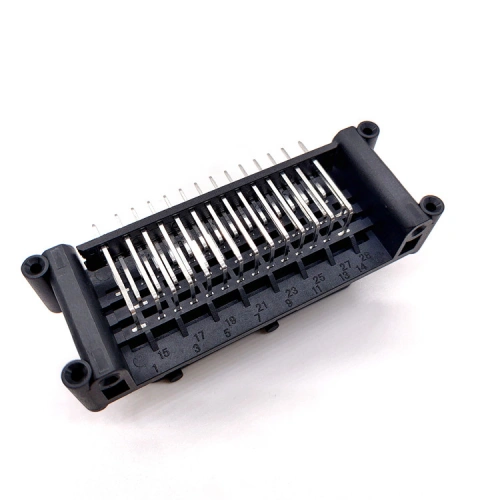

42PIN Auto PCB Connector JHB00077

●Code:JHB00077

● Current Rating: 20A-25A

● 2.0mm/4.0mm Centerline 42P PCB CONNECTOR

lqm849538848@gmail.com

+86 13631516650

Contact Now

+ Inquire

Specifications

Documentation

Waterproof connector for automotive electronic control module, PCB board end header 42PIN vertical board-to-wire

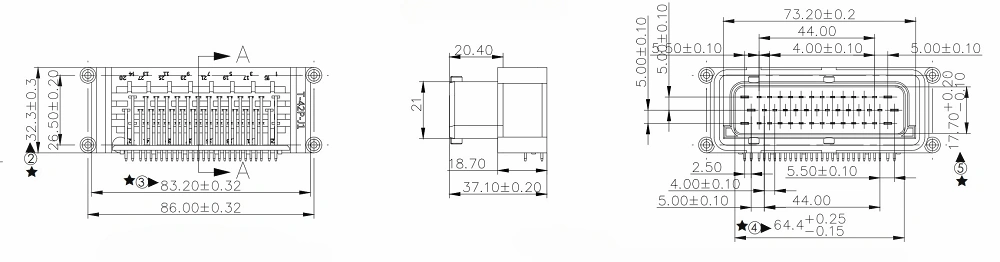

RECOMMENDED PCB LAYOUT

Name	42PIN PCB connector
Code	JHB00077
Material	PBT GF/UL-94 V0
Pitch	2.0mm/4.0mm
Insulation	100M min.
Poles	*63.00.6+361.6 mm**
Temperature	-40-125°
Current Rating	20A-25A
Contact Rresistance	5mΩ(initial)
Metal	Nickel plated bottom tin plating

Customized services are available
